Escapement Desmodromic

Description

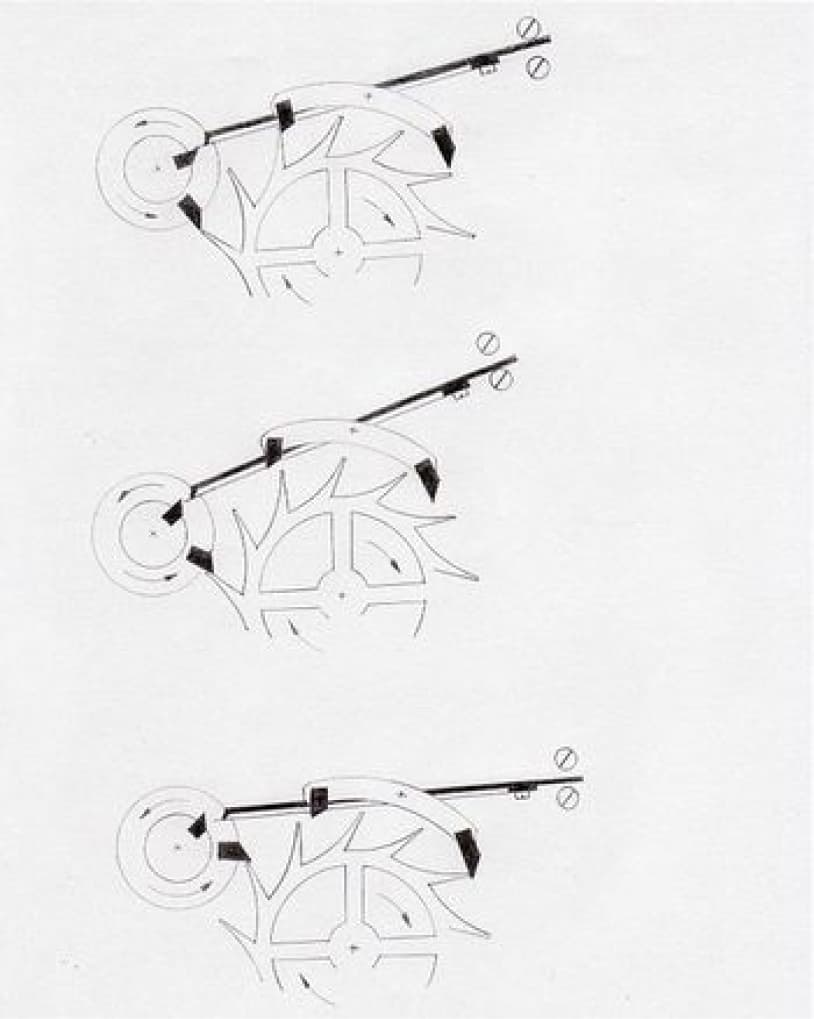

The phrase “Desmodromic” means “force the way” and is used to describe the valvetrainconstruction (elimination of valve springs) of the motorcycle Ducati. Christian used this principle to build a shock-resistant chronometer escapement. The pivoted detent is crafted with one locking pallet and one return pallet (see original sketches below). At the end of the impulse, one tooth of the chronometer wheel slides under the return pallet and forces the detent to return into locking position. The construction guarantees secure locking during shock.

Specifications

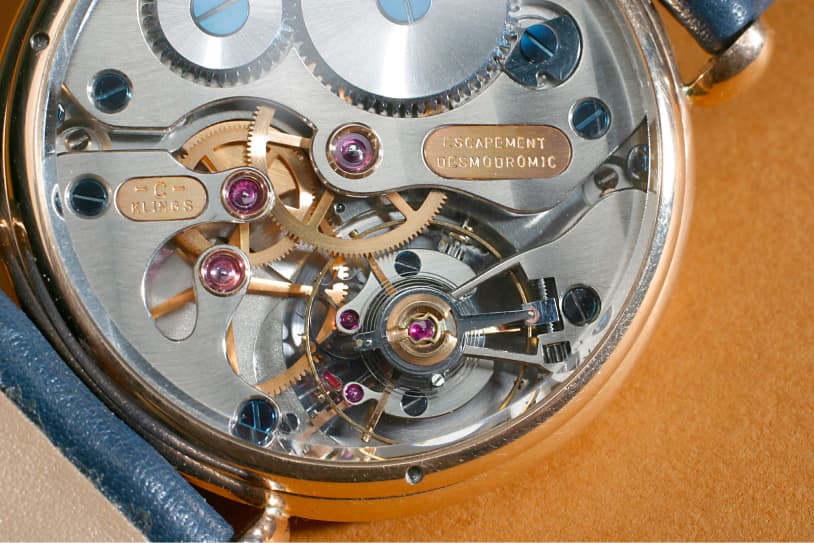

• Movement: manual wind 40hr power reserve, 18 jewel, 28000 beat per hour, created with a pivoted detent with no spring

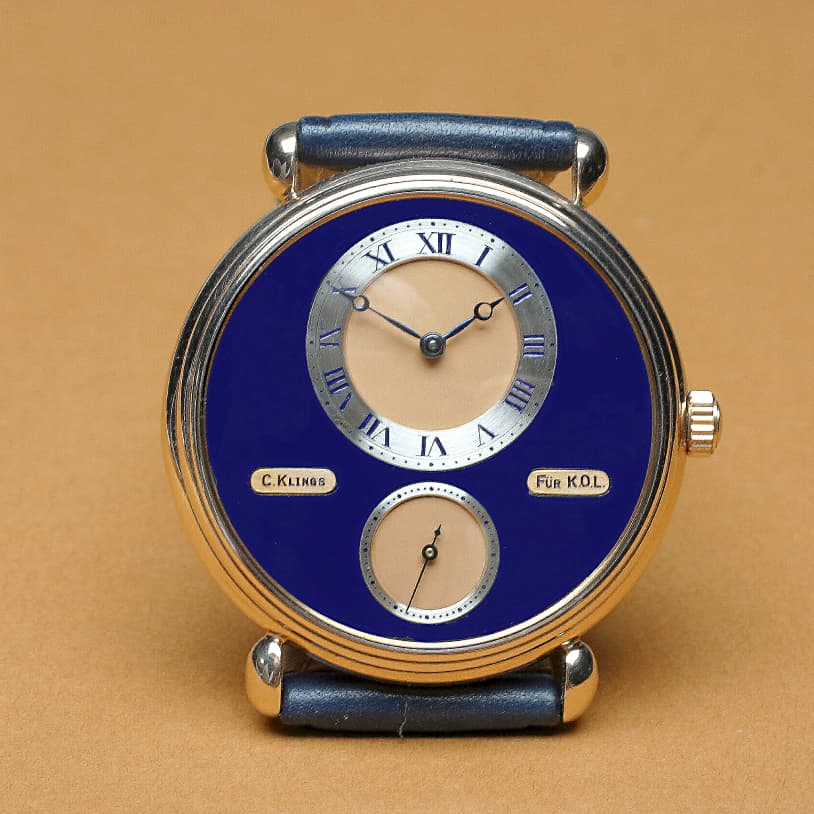

• Case: 42mm done in rose gold
• Dark blue time-only dial with second subdial done in silver and rose gold
